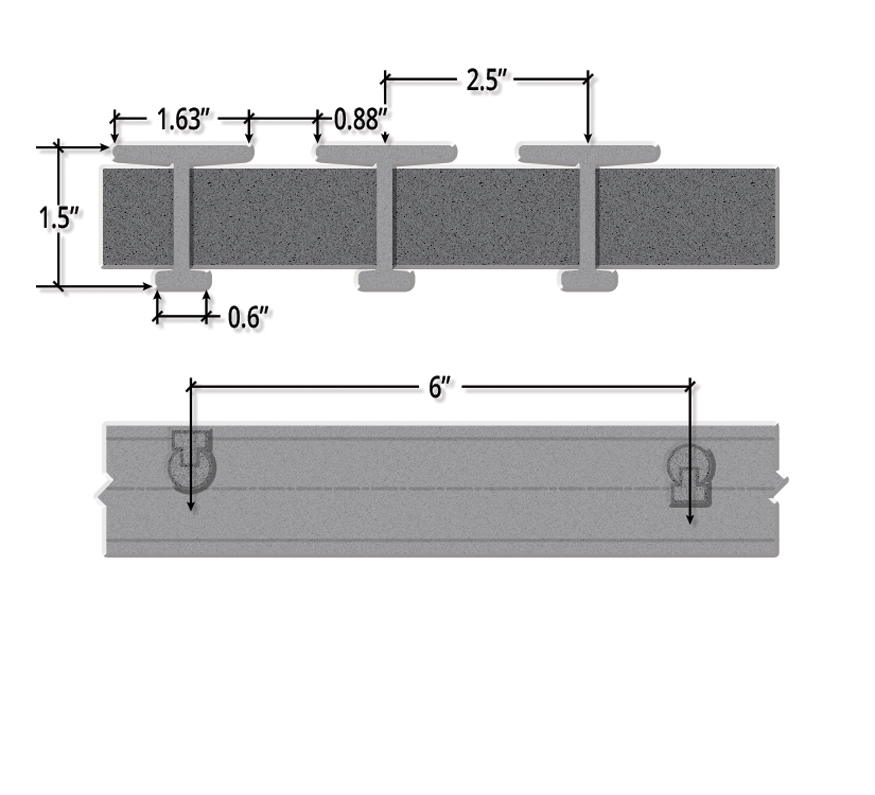

1 1/2" Deep / 35% Open Pedestrian T-Bar Properties
PANEL COLOR
PANEL SIZE
WEIGHT
(APPROXIMATE)
CUSTOM
ITEM
Custom
Custom
2.22
lbs/ft
2
Call to Order!
BARS
BAR DEPTH
OPEN AREA
MAX WIDTH
LOAD BAR CENTERS
CROSS BAR SPACING
5
1.5"
33%
5'
1.5"
6"
~ Properties Per Foot of Width ~
A = 2.74 in
2
I = 0.82 in
4
S
T
= 1.47 in
3
S
B
= 0.87 in
3
UNIFORM LOAD DEFLECTION
(lbs/ft
2
)
50
100
150
200
250
500
1000
24"
SPAN
<0.01
0.01
0.02
0.03
0.03
0.07
0.00
30"
SPAN
0.02
0.03
0.05
0.06
0.08
0.16
0.00
36"
SPAN
0.03
0.07
0.10
0.13
0.16
0.33
0.00
CONCENTRATED LINE DEFLECTION
(lbs/ft
2
)
50
100
150
200
250
500
1000
24"
SPAN
<0.01
0.01
0.02
0.02
0.03
0.05
0.00
30"
SPAN
0.01
0.02
0.03
0.04
0.05
0.10
0.00
36"
SPAN
0.02
0.03
0.05
0.07
0.09
0.17
0.00
