1" Deep / 33% Open Pedestrian T-Bar Properties

One Inch Deep Thirty Three Percent Open Pedestrian T Bar Pultruded FRP Grating

PANEL COLOR	PANEL SIZE	WEIGHT (APPROXIMATE)	CUSTOM ITEM
Custom	Custom	2.25 lbs/ft²	*Call to Order!*

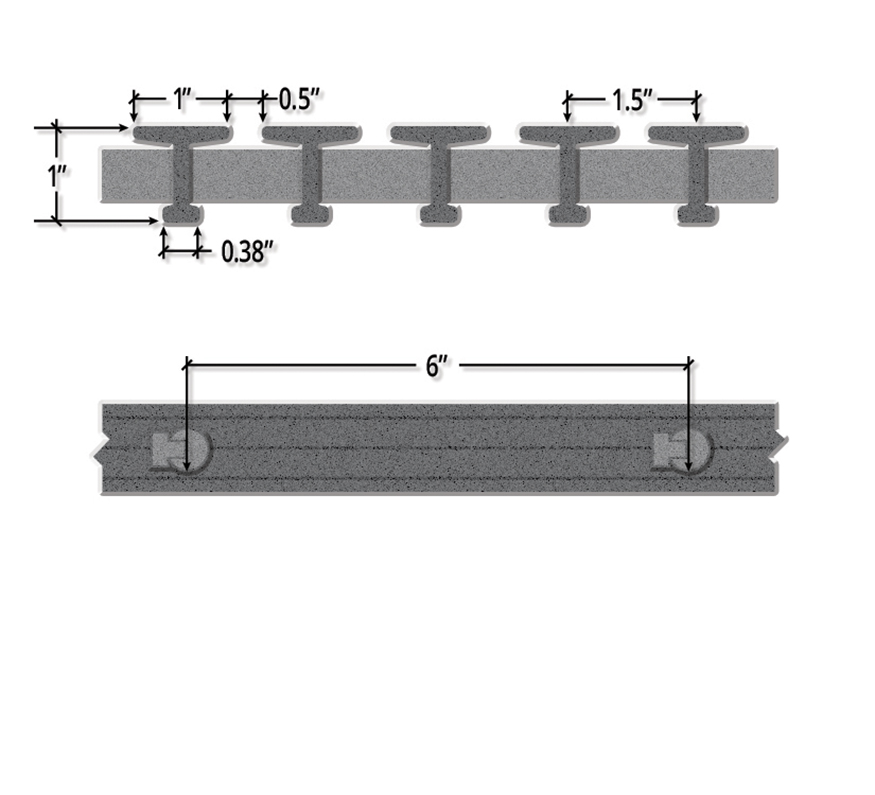

BARS	BAR DEPTH	OPEN AREA	MAX WIDTH	LOAD BAR CENTERS	CROSS BAR SPACING
8	1"	33%	5'	1.5"	6"

~ Properties Per Foot of Width ~
A = 2.34 in² I = 0.27 in⁴ S_T = 0.78 in³ S_B = 0.42 in³

UNIFORM LOAD DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
18" SPAN	<0.01	0.01	0.02	0.03	0.03	0.06	0.13
24" SPAN	0.02	0.04	0.06	0.07	0.09	0.18	0.36
30" SPAN	0.04	0.09	0.13	0.17	0.22	0.43	--

CONCENTRATED LINE DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
18" SPAN	<0.01	0.01	0.02	0.03	0.03	0.07	0.14
24" SPAN	0.01	0.03	0.04	0.06	0.07	0.15	0.29
30" SPAN	0.03	0.06	0.08	0.11	0.14	0.28	--
