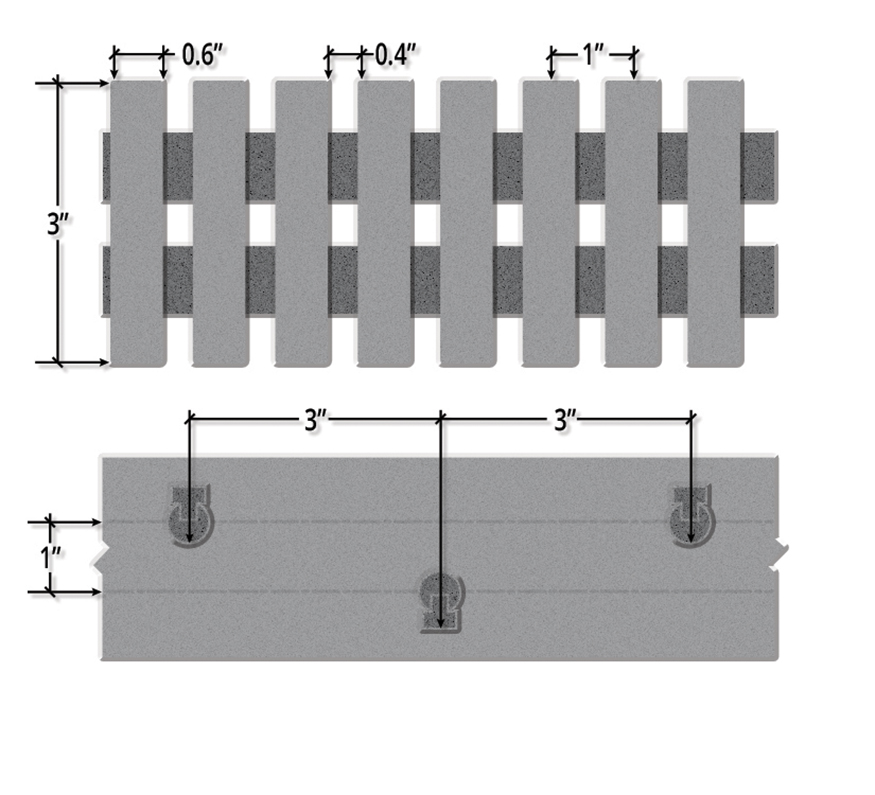

3" Deep / 40% Open Heavy Duty Bar Properties

Three Inch Deep Forty Percent Open Heavy Duty FRP Grating

PANEL COLOR	PANEL SIZE	WEIGHT (APPROXIMATE)	CUSTOM ITEM
Custom	Custom	18.95 lbs/ft²	*Call to Order!*

BARS	BAR DEPTH	OPEN AREA	MAX WIDTH	LOAD BAR CENTERS	CROSS BAR SPACING
12	3"	40%	5'	1"	3"

~ Properties Per Foot of Width ~
A = 21.60 in² I = 16.20 in⁴ S = 10.80 in³

UNIFORM LOAD DEFLECTION (lbs/ft²)
	50	100	200	500	750	1000	2000
24" SPAN	--	--	--	--	--	--	--
30" SPAN	<0.00	0.00	0.01	0.02	0.03	0.03	0.07
36" SPAN	<0.01	0.01	0.01	0.03	0.04	0.06	0.11

CONCENTRATED LINE DEFLECTION (lbs/ft²)
	50	100	200	500	750	1000	2000
24" SPAN	--	--	--	--	--	--	--
30" SPAN	<0.01	<0.01	<0.01	0.01	0.02	0.02	0.04
36" SPAN	<0.01	<0.01	<0.01	0.01	0.02	0.03	0.06

PULTRUDED GRATING
