3" Deep / 40% Open Industrial I-Bar Properties

Three Inch Deep Forty Percent Open Industrial I Bar Pultruded FRP Grating

PANEL COLOR	PANEL SIZE	WEIGHT (APPROXIMATE)	CUSTOM ITEM
Custom	Custom	12.35 lbs/ft²	*Call to Order!*

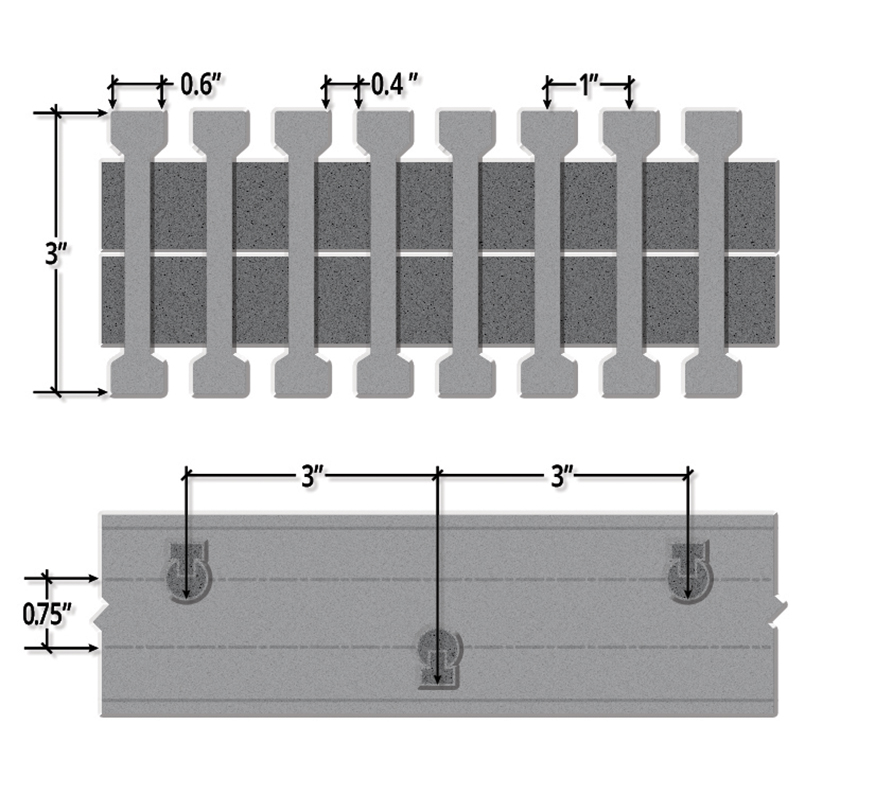

BARS	BAR DEPTH	OPEN AREA	MAX WIDTH	LOAD BAR CENTERS	CROSS BAR SPACING
12	3"	40%	5'	1"	3"

~ Properties Per Foot of Width ~
A = 11.70 in² I = 13.76 in⁴ S = 9.18 in³

UNIFORM LOAD DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
24" SPAN	<0.01	<0.01	<0.01	<0.01	<0.01	<0.01	0.01
30" SPAN	<0.01	<0.01	<0.01	<0.01	<0.01	0.01	0.03
36" SPAN	<0.01	<0.01	<0.01	<0.01	0.01	0.02	0.05

CONCENTRATED LINE DEFLECTION (lbs/ft²)
	50	100	150	200	250	500	1000
24" SPAN	<0.01	<0.01	<0.01	<0.01	<0.01	<0.01	0.01
30" SPAN	<0.01	<0.01	<0.01	<0.01	<0.01	<0.01	0.02
36" SPAN	<0.01	<0.01	<0.01	<0.01	<0.01	0.01	0.03
